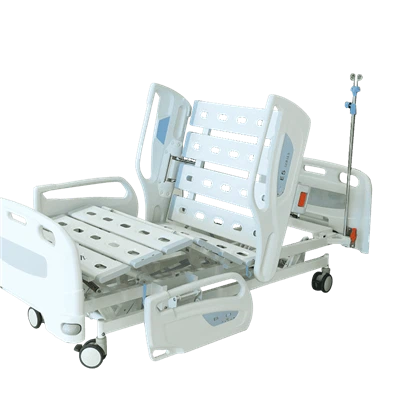

KY-D8535CS-002 Full Electric Medical Bed offers maximum functionality with minimal complexity. so you speed less time operating the bed and more time focusing on essential tasks such as mobilising your patients.
with the help of carefully designed functions such as the intelligent auto contour, the easy chair and flat positions, the care grip and the one-button egress position, you can effectively progress your patient through the steps of mobility.
Full Electric Medical Bed with Side Railing button control : intuitive bed controls require minimal in-service staff training and help minimise the risk of user's error.
Full Electric Medical Bed electric CPR: The back section will be quickly released by manual CPR and Electreic CPR which is local on both sides of the back section.
Full Electric Medical Bed with Easy operation: Newly designed linen shelf is easier and smoother in operation, can be operated with one hand.
| Product Name | Full Electric Medical Bed | Product Model | KY-D8535CS-002 |
| Input Power | 500VA | Static Loads | 200KG |
| Rated Voltage/Frequency | 220V~50Hz | Internal Power Supply | 24V--- |
| Product Safety Classification | Class I Internal Power Supply Type B | Product Waterproof Grade | IPX4 |
| External Dimensions | L2240*W1160*H480-770mm | Bed Surface Dimensions | L1960 * W900(± 10)mm |
| Overall Lifting | H480~770±10)mm | Back Lifting | 0-65°(±1)° |
| Knee Lifting | 0- 45°(±1)° | TR/ATR | 0-15° |
| Left And Right Tilt | NO SUCH FUNCTION | Guardrail Height (above Mattress Plane) | 380mm (± 10mm) |
| Static Safe Working Load | 200KGS | Warranty Time | Five years |
