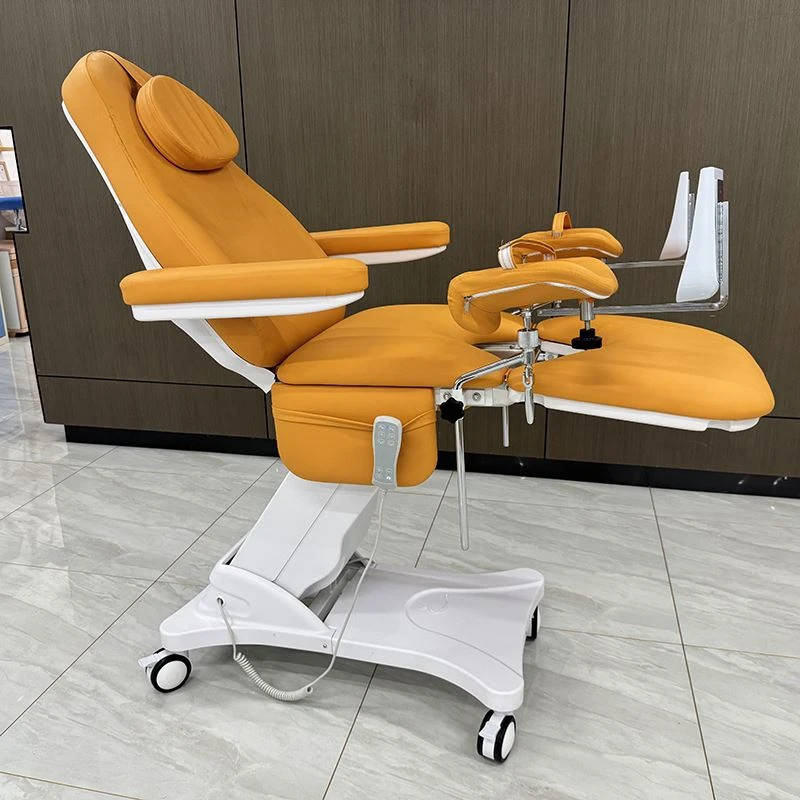

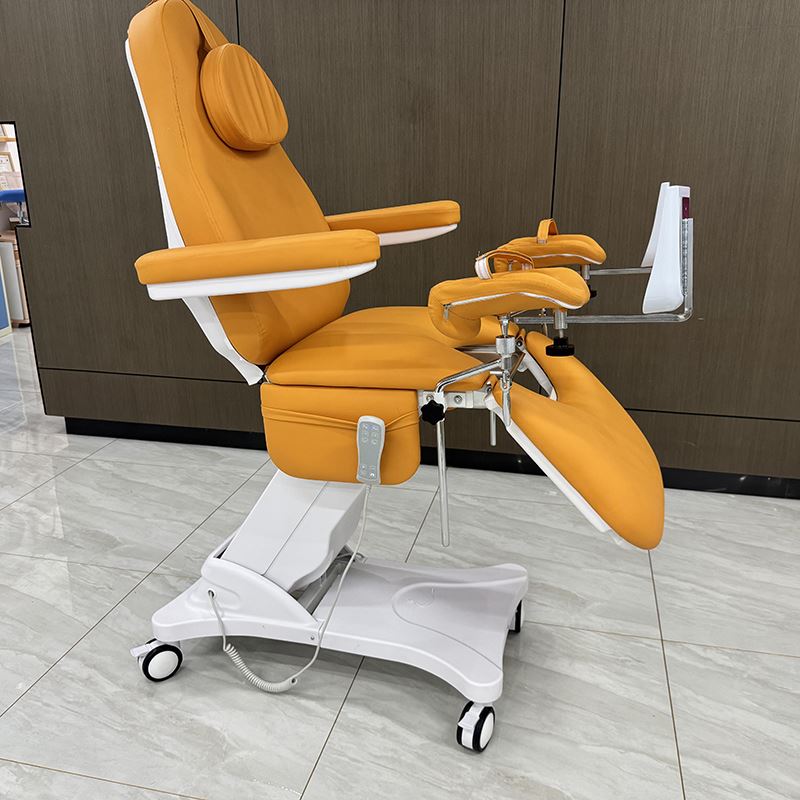

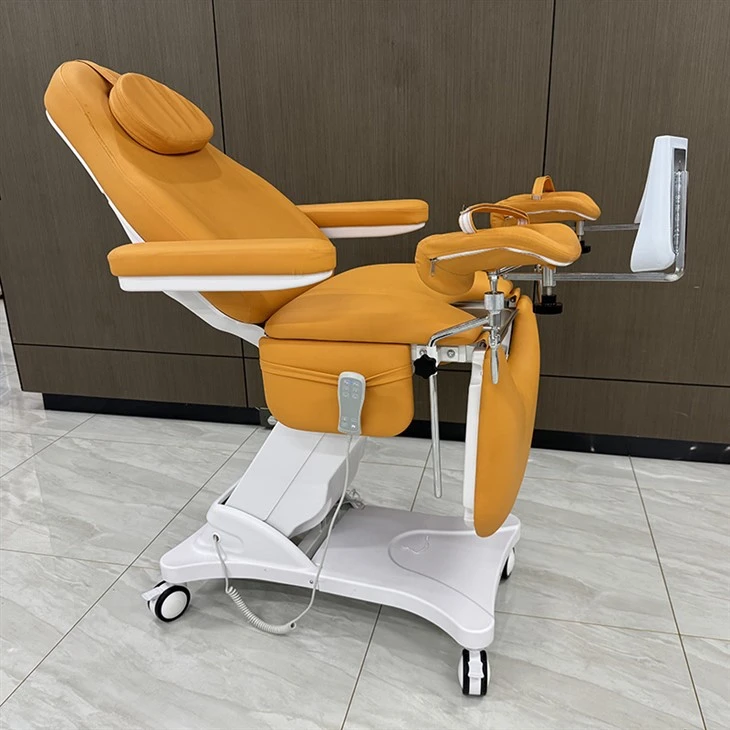

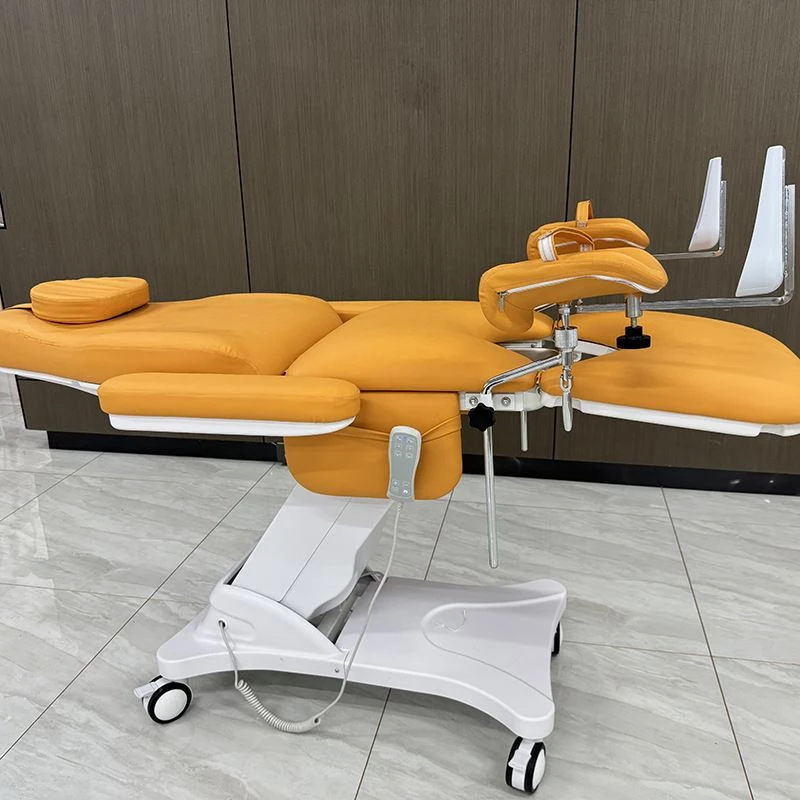

| Gynecological Examination Chair(KY-C02yellow) | ||
| Overall dimensions: L×W×H | mm | 1837*570*680~920(±20) |
| Overall height | mm | 680~920 |
| Backrest adjustment range | ° | 0~80° ±5 |
| Knee Board Tilting | ° | -90°~0 |
| Safe Load | kg | 200 |
| Sponge+leather Thickness | cm | 8 |
| Safe Load | kg | 202 |
| G.W | KGS | 50 |
| Base material | acrylic shell with inner aluminum bracket | |
| Configuration supplied | 3pcs Linear actuator; 1pc hand controller, 1pc control box, 1pc dirty basin, 1 pair PU foam Legholders, 4pc 3inch casters. |
Back lift
The backrest of the gynecological examination chair supports electric angle adjustment. Its maximum reclining angle is 80±5°. Controlled by the hand controller, it moves smoothly without impact and can be steadily locked at any target angle. It meets the posture requirements of gynecological examinations and treatments and improves patient comfort..
Thick padded armrests
The chair is equipped with thick padded armrests covered with eco-friendly PU material and neat stitching for soft and comfortable touch. The armrests are upward-flippable. They can be lifted upwards to facilitate patients getting on and off the chair and avoid collision. With sturdy supporting base, the armrest features reliable load-bearing capacity.
Legrest
The leg supports of the gynecological examination chair are electrically adjustable. They can be lifted upward from the horizontal position, and can be lowered down to 90° as the minimum position. Controlled by the hand controller, they move smoothly without impact and stay steadily at any desired angle, meeting various clinical posture requirements for gynecological examinations and lower limb treatments.
Hand Controller
The obstetric bed is equipped with a wired hand controller, which can electrically adjust the backrest angle, leg section angle and overall bed height. It integrates mattress heating function. The temperature can be set up or down via buttons, and the digital display shows real-time temperature. With intuitive icon keys, it allows medical staff to quickly adjust bed posture, improving comfort for patients during examination and delivery.
Caster
When the lower caster latch is depressed, the brake mechanism mechanically clamps the wheel to lock the bed, preventing displacement and ensuring safety and stability for patients.
Caster
When the caster latch is lifted, the brake releases, the wheel rotates freely, and the hospital bed can be transferred smoothly.
Leg support
Adjustable leg supports are specially designed for obstetric examination and delivery. The height and angle can be freely adjusted to properly support the patient's legs, bring comfortable positioning and facilitate doctors' operation.
Waste basin
The obstetric bed is equipped with a pull-out waste basin made of 304 stainless steel, hidden under the seat plate. It is used to collect lochia, flushing fluid and contaminants during delivery and gynecological examination. The basin can be fully pulled out and detached for dumping, cleaning and disinfection. It is corrosion-resistant and easy to wipe, meeting hospital infection control requirements for obstetric wards.
Detachable headrest
This detachable independent headrest is filled with high-density rebound foam and covered with magenta eco-friendly PU leather with neat stitching. It can be disassembled and finely adjusted in position to fit and support the patient's head and neck, relieving cervical pressure during examination. The waterproof PU cover is easy to wipe and disinfect, meeting hospital infection control requirements.
